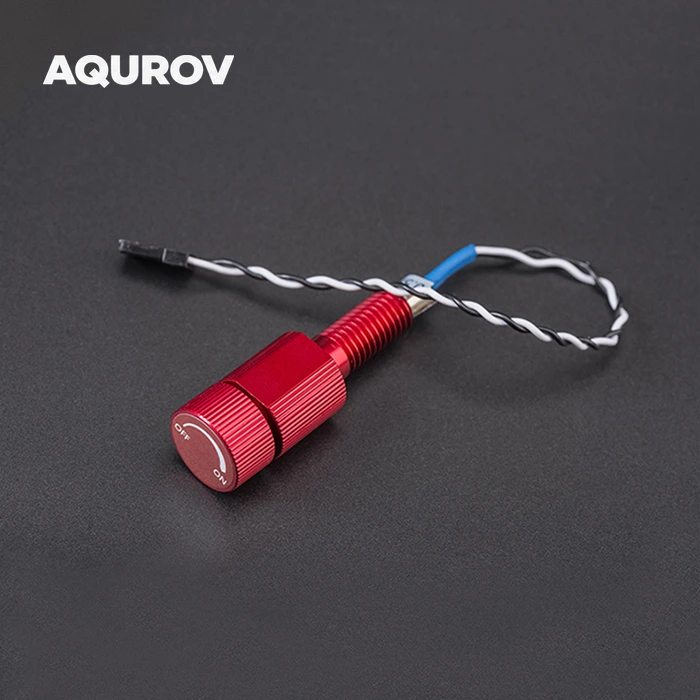

M10 & M8 Underwater Switch

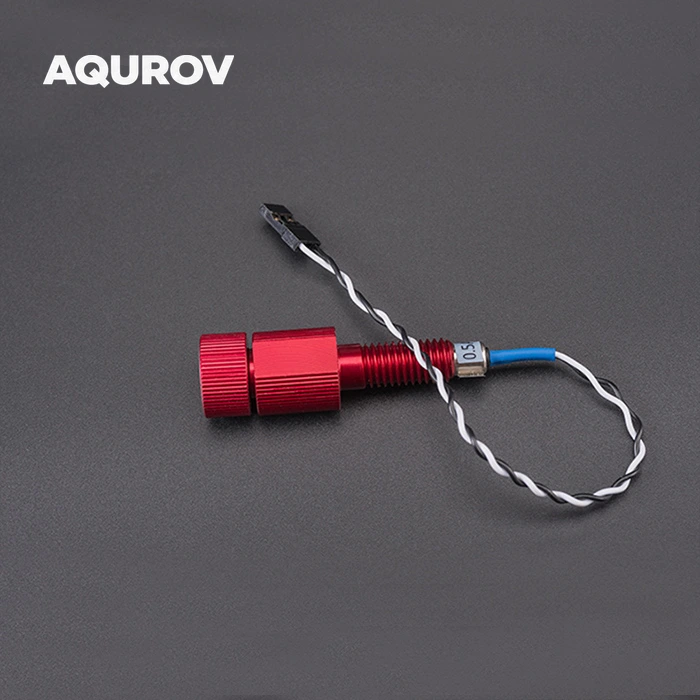

M10 & M8 Underwater Switch - Image 2

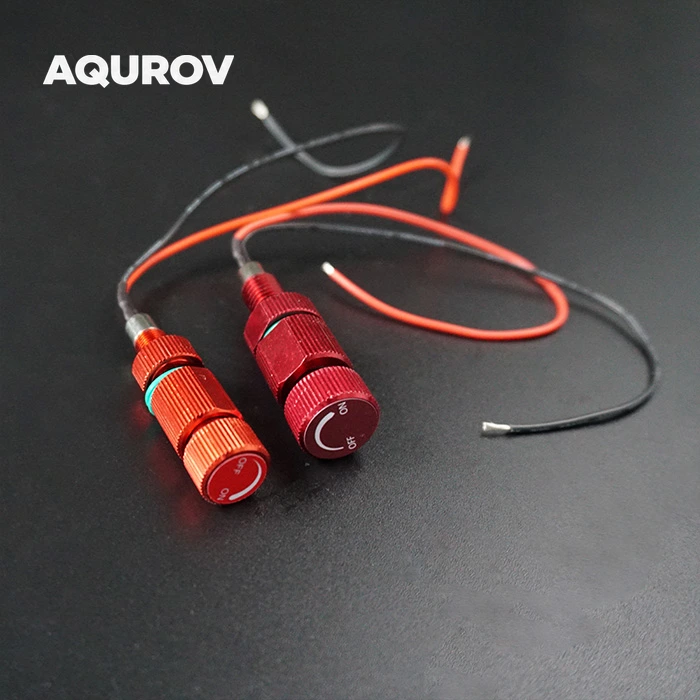

M10 & M8 Underwater Switch - Image 3

M10 & M8 Underwater Switch

Price range: $16.99 through $20.39

SKU: N/A Categories: ,

Specifications

The ratings a system has to be designed around, grouped as they are maintained in the product record.

Electrical

Operating voltage125 VAC
Operating current0.5 A
Plug resistance0.02 ΩParameter name as written in the description ("Plug Resistance")

Mechanical

Thread sizeM10/M8From the description headline ("M10 & M8"); the two versions are not listed separately
Line diameter22 AWG

Rating

Max depth300 mStated in the product description (within a depth of 300 meters); not a certified test result
Operating temperature-20–70 °C
Insulation resistance100 MΩ

Description

Aluminum M10 & M8 ROV Waterproof Power Switch OpenROV Rotary on-off Switch Diy Kit 300m Depth Closure Remote Operated Vehicle

Product Description

This switch is an aluminum rotary underwater switch, which is widely used for underwater robots and other types of equipment within a depth of 300 meters.

For a low current low voltage switch, please use a relay or mos tube switch tube. And it can not be used as a high current power switch directly.



Product Features

  • Aluminum processing, surface red oxidation.
  • Double-layer fluorine rubber sealing ring
  • High-precision touch switch

Note: when turning to the end clockwise to connect, loosen a certain distance to disconnect



Specification

  • Operating Voltage: 125VAC
  • Operating Current: 0.5A
  • Operating Temperature: -20℃-70℃
  • Plug Resistance: 0.02Ω
  • Insulation Resistance: 100MΩ
  • Line Diameter: 22AWG



Content

  • 1 x Switch Kit

Additional information

Model

M10, M8
