Description
UNDERWATER PROPULSION
R58 PRO

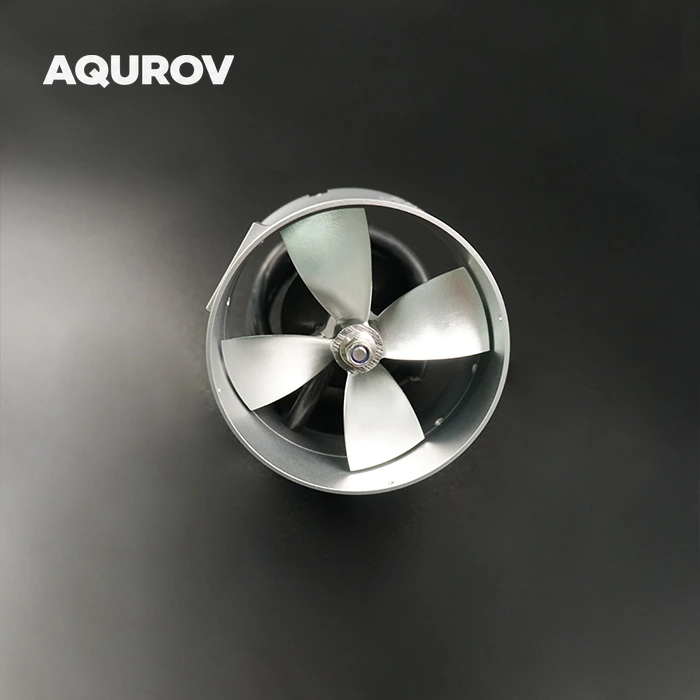

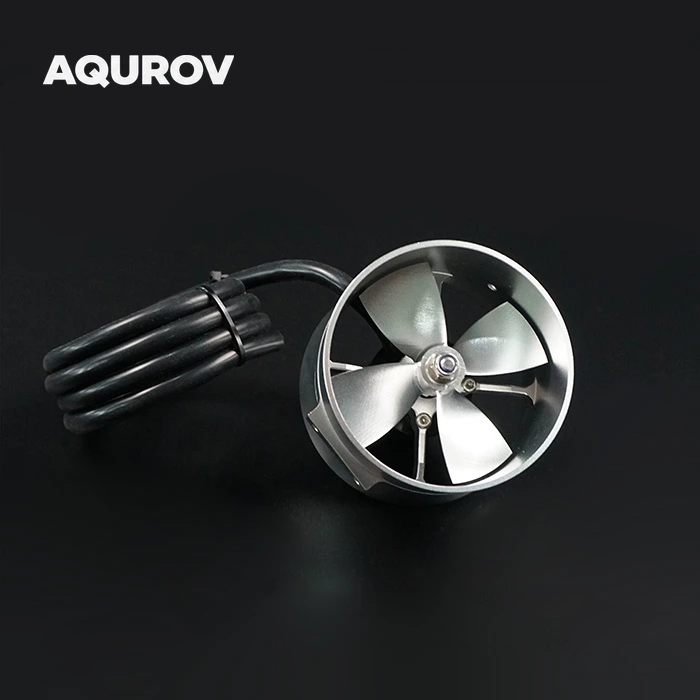

Brushless Underwater Thruster
Compact propulsion with an enclosed metal motor housing.
ENCLOSED CONSTRUCTION / FLUID-FILLED DESIGN / CW & CCW
01 / Enclosed Construction

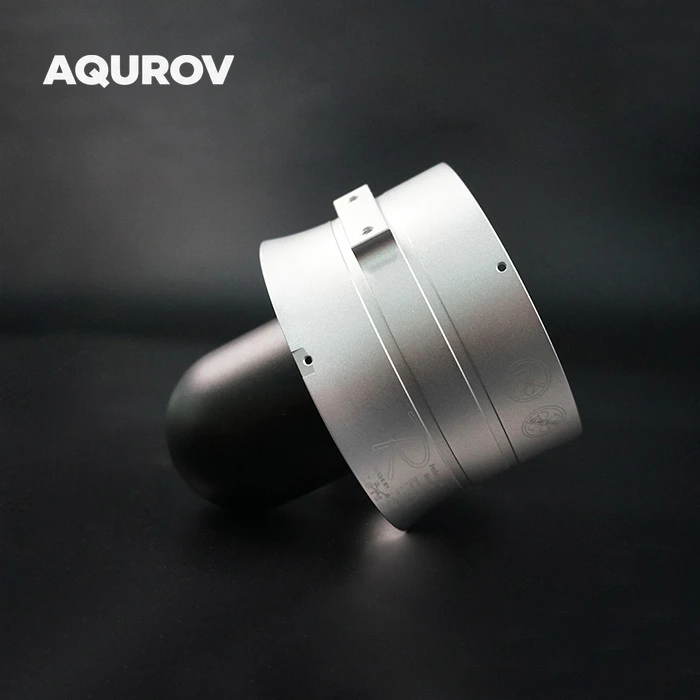

The R58 PRO combines a brushless motor with a fully enclosed metal body and internal filling fluid. Its compact construction is designed to limit sediment and impurities entering the motor assembly.
02 / Key Features
Internal Filling Fluid
A fluid-filled internal design supports the enclosed motor construction.
Corrosion Protection
Corrosion-resistant surface treatment and a three-core silicone cable support underwater integration.

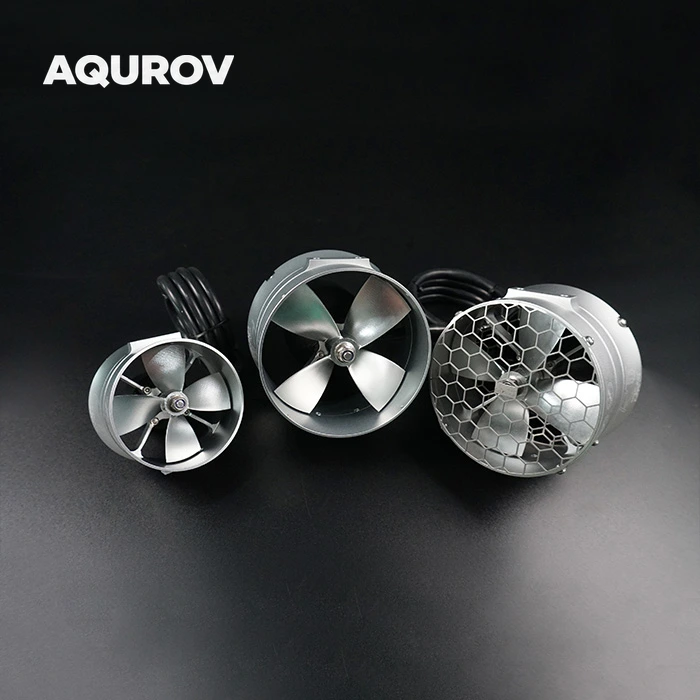

Optional Protective Grille
The standard configuration is supplied without a grille. A protective grille is optional.
03 / Configuration Overview
| Model | R58 PRO |
|---|---|
| Motor type | Brushless |
| Body construction | Fully enclosed metal housing |
| Internal design | Fluid-filled |
| Cable type | Three-core silicone cable |
| Propeller options | CW / CCW |
| Protective grille | Optional; not fitted as standard |
| Matched controller | 80A brushless ESC |
04 / Technical Data
Review the technical data below when planning the electrical supply and mechanical installation. Select the image to view the original at full size.
05 / Select CW or CCW
Choose the propeller configuration required by your vehicle layout. For a multi-thruster build, record the position, orientation and selected configuration of each unit before installation.
06 / Controller & Integration
The matched controller listed for the R58 PRO is an 80A brushless ESC. Check the intended supply voltage, motor load and control requirements when selecting your electrical system.
- Allow clear water flow around both ends of the thruster.
- Secure cables to the frame and keep them away from the propeller.
- Check mounting dimensions and electrical connections before assembly.
Need Help with Your Configuration?
Share your supply voltage, target thrust, operating depth and thruster quantity with our team to review the selection.
