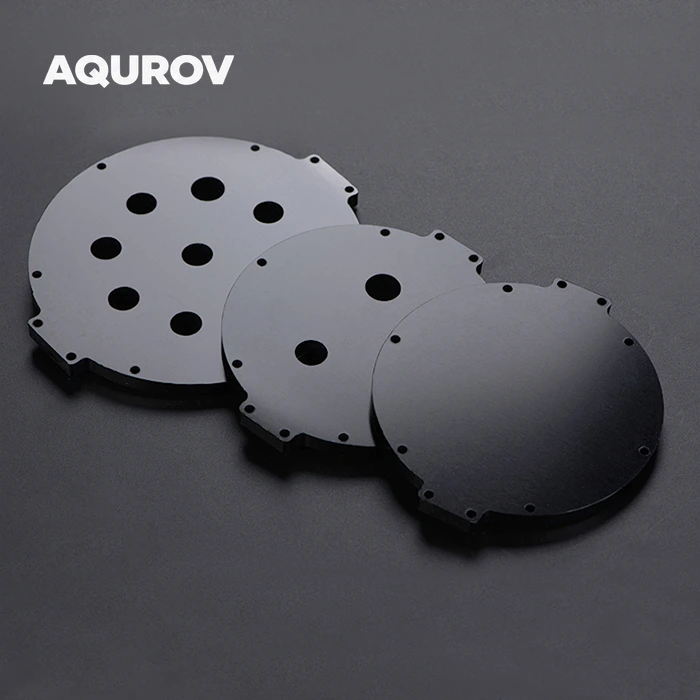

Aluminum End Cap

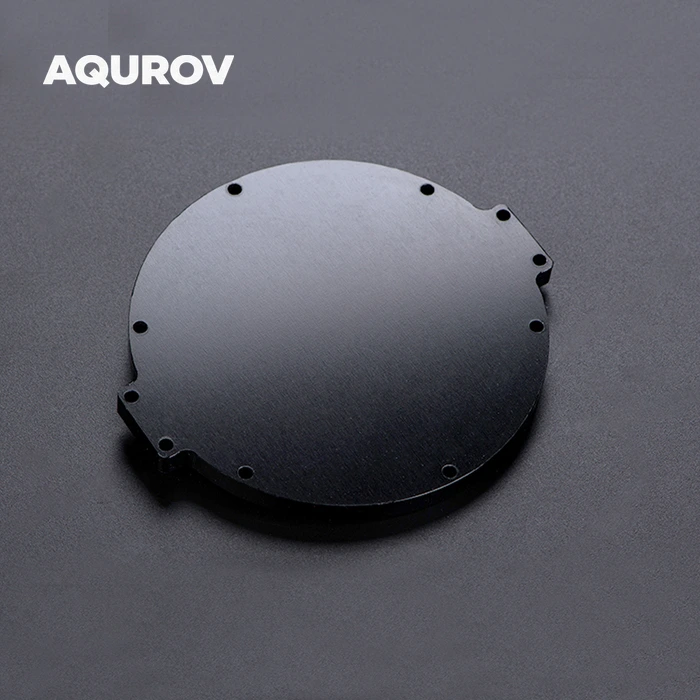

Aluminum End Cap - Image 2

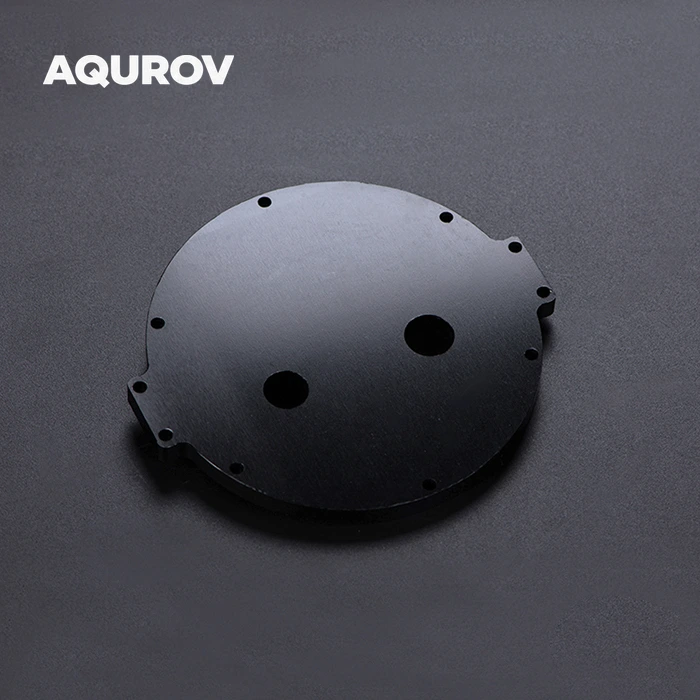

Aluminum End Cap - Image 3

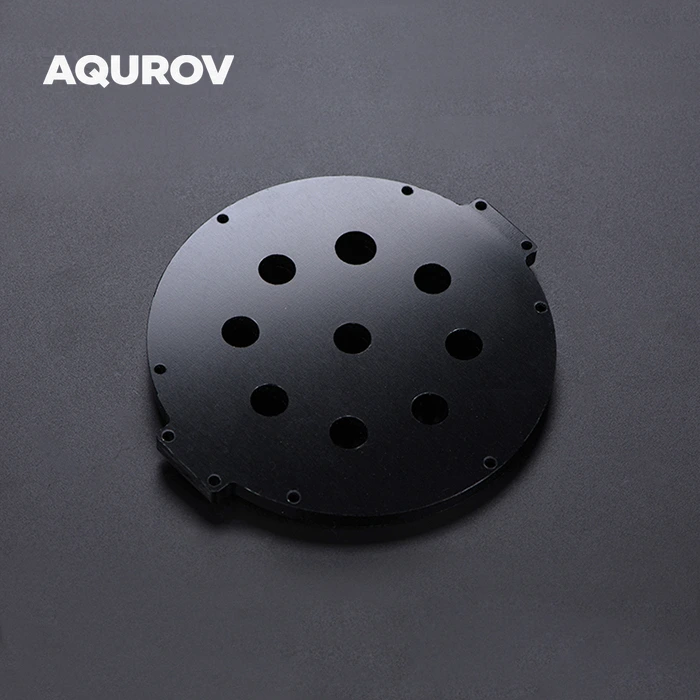

Aluminum End Cap - Image 4

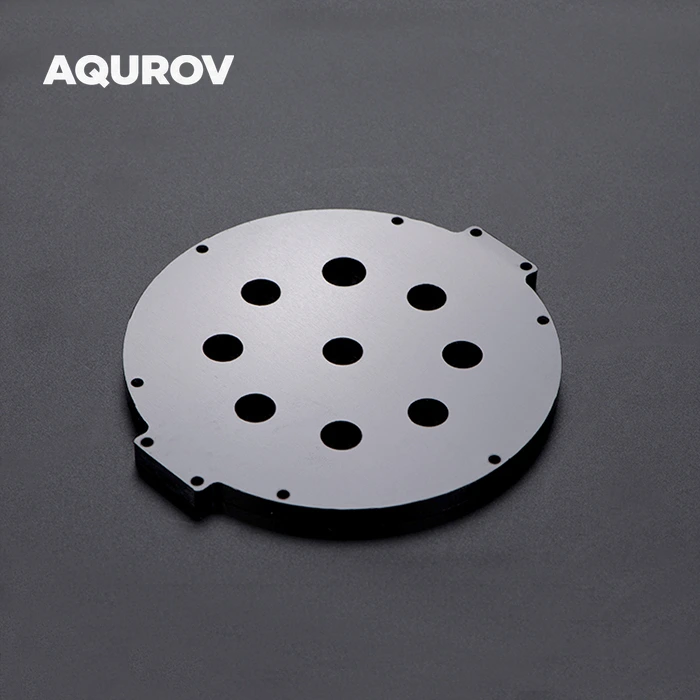

Aluminum End Cap - Image 5

Aluminum End Cap

Price range: $18.29 through $23.99

This aluminum end cap is for use on the 90mm Watertight Enclosure.

Technical Downloads Request a document

SKU: N/A Categories: ,

Specifications

The ratings a system has to be designed around, grouped as they are maintained in the product record.

Mechanical

Outer diameter90 mmProduct Feature lists 90 mm or 110 mm; this row is the 90 mm variant
Outer diameter110 mmProduct Feature lists 90 mm or 110 mm; this row is the 110 mm variant
Number of holes2Stated in the Note for the 90 mm outer diameter variant, including the hole reserved for the watertight connector
Number of holes9Stated in the Note for the 110 mm outer diameter variant, including the hole reserved for the watertight connector

Materials

MaterialAluminum alloyProduct Feature: aluminum alloy material

Description

Product Description

This aluminum end cap is for use with a watertight enclosure for ROV/AUV. We designed these end caps to have a greater depth rating than the clear acrylic end caps. Depth rating to be determined.

Aluminum is much easier to machine than acrylic. If you’d like to drill your own holes, tap holes, etc., then this end cap is the way to go.



Product Feature

  • 90mm or 110mm outer diameter
  • Aluminum alloy material
  • black oxidation on the surface



Specification

Product Use

Note:

For 90 outer diameter end cap with 2 holes, 110 outer diameter end cap with 9 holes, there reserved a hole, which used for the watertight connector. And the rest other holes are designed for the threading screws. The hole for the watertight connector is larger than the penetrators.



Contents

  • 1 x Aluminum End Cap

Additional information

Model

90mm(0hole), 90mm(3 hole), 110mm(0 hole), 110mm(9 hole), 110mm(16 hole)
