Description

Product Description

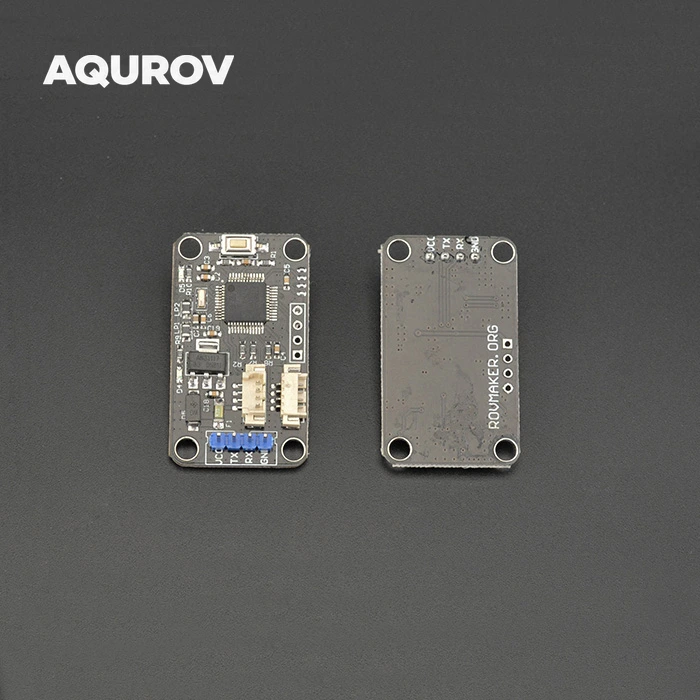

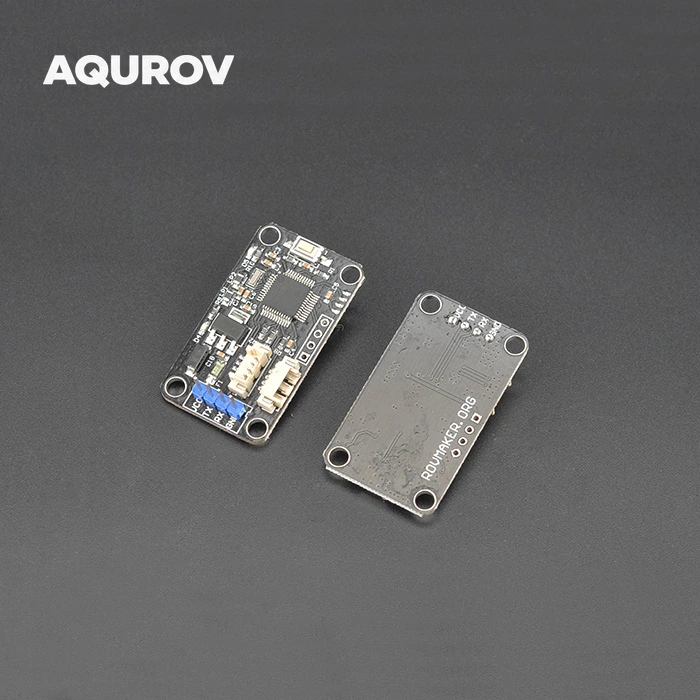

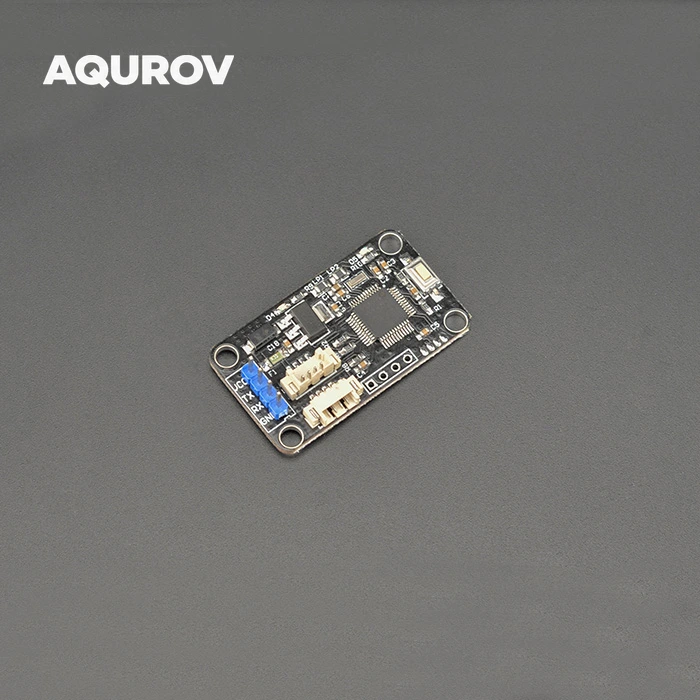

Rovmaker OpenROV Diy Kit AUV Depth Sensor Development Solver Board Correction Function Serial Output Depth Gauge

The depth sensor board has the following function:

• Read the measurement information of the depth sensor;
• Read the correction data of the sensor;
• The output depth after serial port correction;
• Temperature information;

This depth solver board is suitable for the MS5837 depth sensor

Specification

• Power: DC5V
• Electric current:<0.1A
• Range
• Depth:0-300M
• Temperature:-20-85℃
• Port Settings
• Baud rate:115200(adjustable)
• Data bit:8
• Stop bit:1
• Parity bit: no

Data Output Format

• Board Output String Format                 T=XX.XXD=XX.XXr\n
• Floating-point temperature output      T  Unit:℃
• Floating-point depth output                  D   Unit: M
• e.g.T=25.27D=1.21                                  Tmperature:25.27℃    depth:1.21m

Contents

• 1 x I2C Level Converter Board
