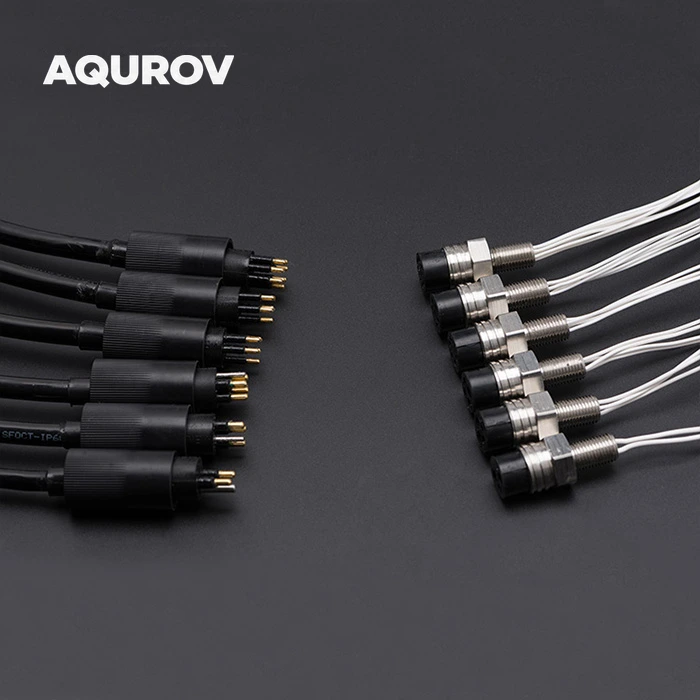

Female Bulkhead Connector + Male Inline Cable Connector (Micro Circular series)

$66.66 – $115.00

  • Pickup: Available today at store
  • Fast shipping with DHL、UPS、FedEx、etc,.
International Shipment

Your orders are shipped seamlessly between countries

Quality Control

All products have the right quality insurance

Secure Payment

Your payments are secure with our private security network.

Description

Product Description

Rovmaker Ip68 Plug Socket 2 Pin Connector With Male and Female Industrial Plug and Socket

  • Small volume and lightweight, small footprint, professional wet plug.
  • High seawater corrosion-resistant stainless steel shell material.
  • Standard pin and hole position distribution, 7/16″-20 UNF tail thread, can be exchanged with different brands of the same model.
Dimensions Detail

Specification

STRUCTURE
MATERIALS AND SPECIFICATIONS
Main
The seawater corrodes stainless steel
Install screw
7/16-20 UNF thread length is 15/19mm
Socket head
Neoprene (special mixing rubber for underwater connector)
Contact Pin
Gold-plated copper alloy, American standard pin
Positioning pin
303 stainless steel (2 needle Ø 3.2, 3/4 needle Ø 2, 5/6/8 needle don’t need)
O-rings
Nitrile rubber, the imported o-rings, parker 2-014, Ø 12.42 x 1.78
Locking lid
Polyformaldehyde resin (POM)
Cable plug body
Special polyether
Install line
Teflon, silver-plated pure copper.
Endcap
Neoprene (special mixing rubber for underwater connector)
Cable plug
Pressure-resistant seawater special cable.
TECHNICAL PERFORMANCE
ITEM
RATING VALUE
Depth
0~1000 meters
Voltage
300V (resistance to voltage is greater than 1500V 60s)
Working current
2A~16A
Insulation resistance
> 1000 m Ω (room temperature)
Wet insertion frequency
> 500 times
Working temperature
(-4~60)°C

Pre-cautions

*Always apply grease before mating.
* Disconnect by pulling straight, not at an angle.

* Do not pull on the cable and avoid sharp bends at cable entry.
* When using a bulkhead connector, ensure that there are no angular loads.
* All kinds of connectors should not be exposed to extended periods of heat or direct sunlight.

  Greasing and mating above water (dry mate) :

  * Connectors must be greased with Molykote 44 Medium(recommended brand) before every mating.
  * A layer of grease corresponding to a minimum 1/10 of socket depth should be applied to the female connector.
  *  The inner edge of all sockets should be completely covered, and a thin transparent layer of grease left visible on the face of the connector.
  *  After greasing, fully mate the male and female connector in order to secure optimal distribution of grease on pins and in sockets.
  * To confirm that grease has been sufficiently applied, de-mate, and check for grease on every male pin. Then re-mate the connector.

  Greasing and mating underwater (wet mate) ：

  * Connectors must be greased with Molykote 44 Medium(recommended brand) before every mating.

  * A layer of grease corresponding to approximately 1/3 of the socket depth should be applied to the female connector.
  * All sockets should be completely sealed, and a transparent layer of grease left visible on the face of the connector.
  * After greasing, fully mate the male and female connector and remove any excess grease from the connector joint.

  Cleaning

  * General cleaning and removal of any accumulated sand or mud on a connector should be performed using spray based contact cleaner (isopropyl alcohol).

  * New grease must be applied again prior to mating.

  Use of Loctite

  * For locking metallic connectors, the use of Loctite 243 is recommended.
Installation Requirements
  •  End surface roughness requirements Ra1.6 in the diameter of the screw hole around 25mm when threaded hole installation.
  •  Hole diameter should be between Ø 11.2 ~ Ø11.4 mm and roughness requires Ra1.6 in the diameter of the screw hole around 25mm when through-hole installation.
  •  Before installing, make sure to apply a thin layer of silicone oil to the o-ring, not too thick.
More Pins

Additional information

Configuration

MCBH 2F + MCIL 2M, MCBH 3F + MCIL 3M, MCBH 4F + MCIL 4M, MCBH 5F + MCIL 5M, MCBH 6F + MCIL 6M, MCBH 8F + MCIL 8M
