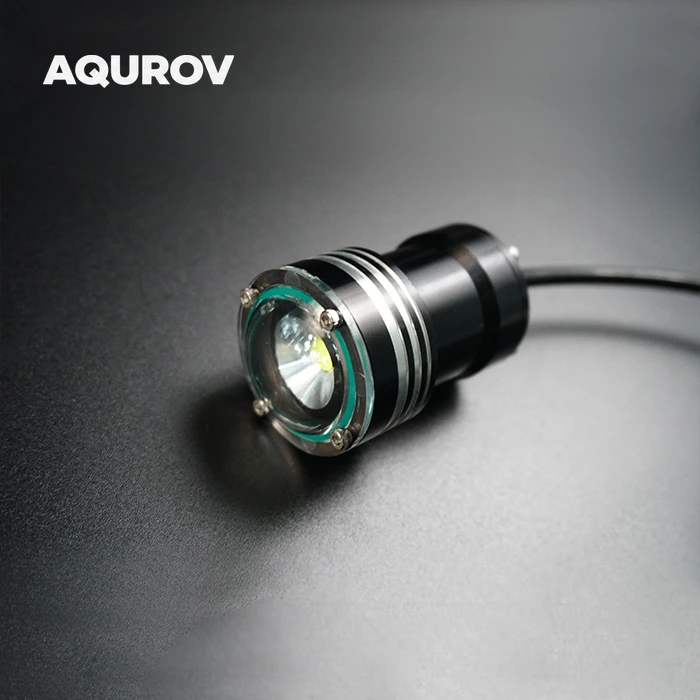

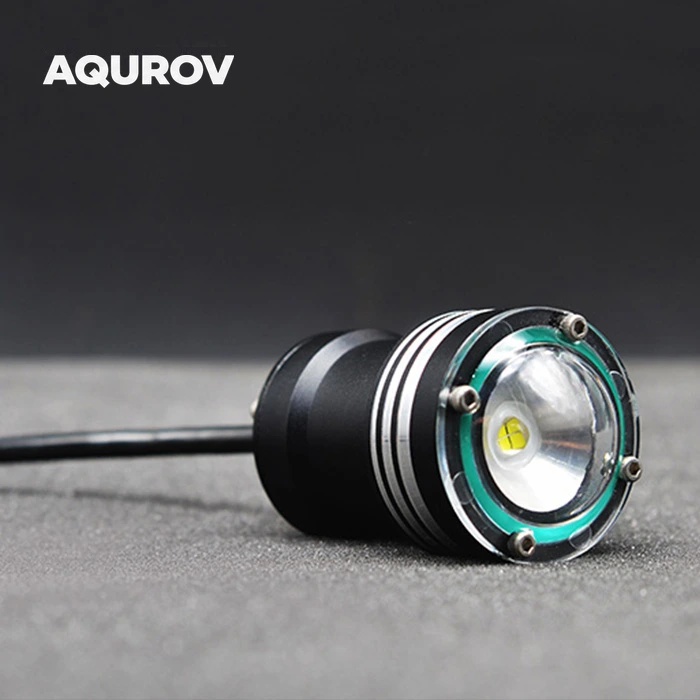

Lumen Subsea Light for ROV/AUV

$79.00$99.00

A 2200 lumen subsea LED light with servo signal control, daisy-chain connection for multiple lights, and smart over-temp protection.

International Shipment

Your orders are shipped seamlessly between countries

Quality Control

All products have the right quality insurance

Secure Payment

Your payments are secure with our private security network.

Description

Product Description

Working Mode:
Yellow line, the red line is connected to the power supply at the same time, the light will be illuminated at the highest brightness, forced switch mode, etc. It takes 3-4s for the internal programs to judge the light after the mode is lit. When the lamp temperature exceeds 80 degrees Celsius, it will automatically lower the brightness to protect the LED light. When the temperature is lowered, the brightness will be restored.

LED Light Shows  Do not use this light in the air for a long time, it will accelerate aging!



Specification

  • Power:20W
  • Voltage: DC 12-28V
  • Water depth: 300m at most
  • brightness: 2200 lumens
  • PWM range: 1100 – 1900
  • Working temperature: -10~80 degree
  • LED lifetime: 5000h

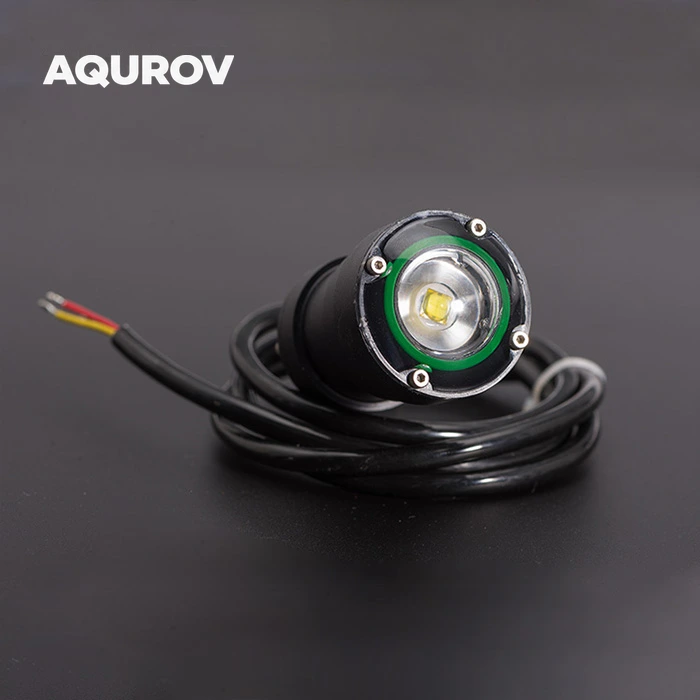

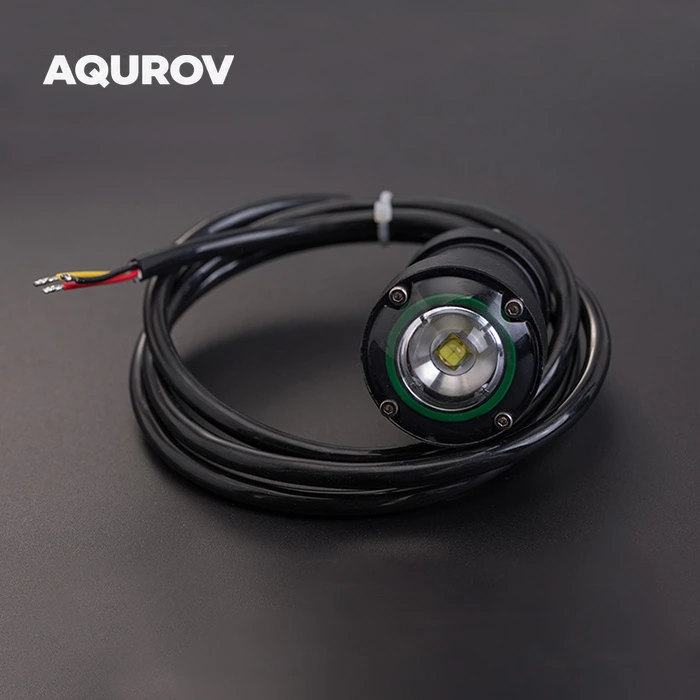

How to connect the cable:

  • RED to V+ 12~28V
  • Black to GND
  • Yellow to PWM



Drawings



Contents

  • 1 x Lumen Subsea Light

Additional information

Model

Lumen Subsea Light, Lumen Subsea Light+ Holder
